RAM:16 MB
CPU:32-bit RISC
Battery-Powered Memory:512 KB
Data/Recipe Storage:512 KB
Real-Time Clock:Yes (with rechargeable lithium battery)
Display:Monochrome STN LCD, 16 grayscale, 320×240 pixels, CCFL backlight, estimated lifespan of 50,000 hours at 25°C ambient temperature
Display Active Area:117.2 mm wide x 88.4 mm high. Capable of displaying 40×30 characters of 8×8 size
Screen Adjustment:Through touchscreen
Touchscreen:Analog
Power Supply:24V DC ±15%, less than 20W
Operating Temperature:0°C to +50°C
Panel Dimensions:195.0 mm wide x 145.0 mm high x 6.0 mm deep
Installation Depth:59.1 mm
Opening Size:185.8 mm wide x 135.8 mm high
Front Panel Seal:IP65/NEMA 4X (Indoor use only)
Keyboard:1 Menu key and 5 user-defined function keys (F1-F5). Pressure: 350±50g force. Life expectancy: over 1,000,000 activations
Weight:0.86 kg

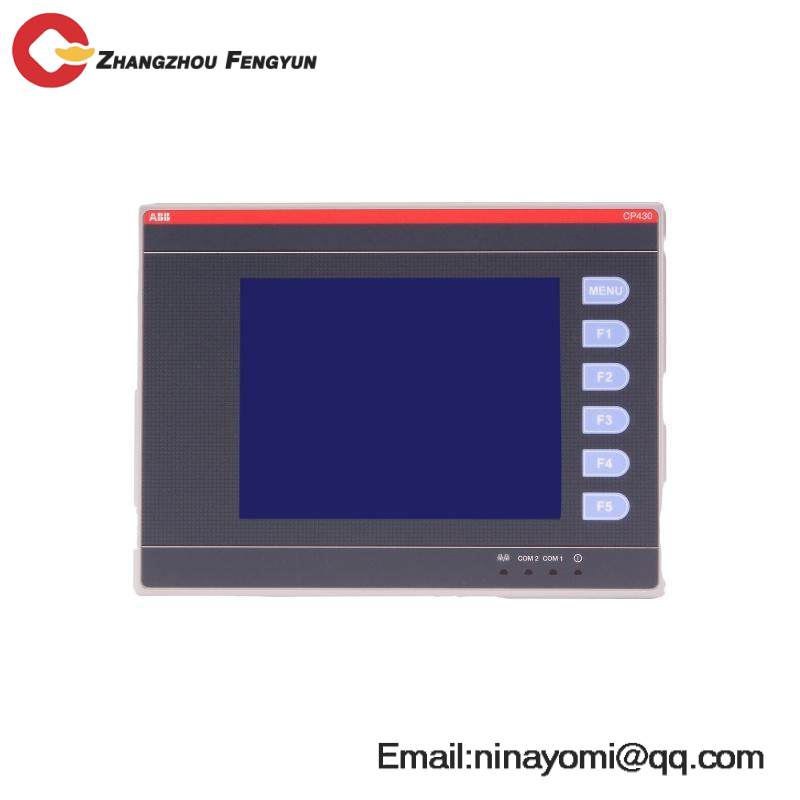

The ABB CP430BP Human-Machine Interface is designed to provide operators with an intuitive interface for controlling and monitoring industrial processes. Its 16 gray shade, 320×240 pixel monochrome STN LCD display ensures clear visibility under various lighting conditions. With a durable analog touchscreen, users can easily navigate through the interface. The device operates within a wide temperature range, making it suitable for harsh industrial environments. Equipped with a real-time clock powered by a rechargeable lithium battery, it maintains accurate timekeeping even during power outages. The CP430BP also features communication ports for RS232/RS485 connectivity, allowing seamless integration with other systems. Designed for ease of installation and maintenance, the front panel seal rating of IP65/NEMA 4X ensures protection against dust and water splashes. With its robust build quality and advanced functionalities, the ABB CP430BP is an essential tool for any industrial automation setup.
